Features:
◆Centrifugal pump
◆Magnetic force transmission
◆High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆With wide range operating temperature
◆PWM signal speed controlling(optional)
◆Fault feedback function(optional)
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection
Technical Parameters:
| JP300-250W |
| Item | Description |
| Rated Voltage | DC24V |
| Rated Currrent | 12.5A |
| Operating voltage | DC18-32V |
| Rated Power | 300W |
| Working Environment | -40~105℃ |
| Working Medium | 50% glycol aqueous solution |
| Protection level | IP68 |
| Working noise | ≤61dB ( Distance 1m) |
| Working life | ≥20000h |
| Weight | 2.45kg |
| Protection function | Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling. |
Dimensions(mm):

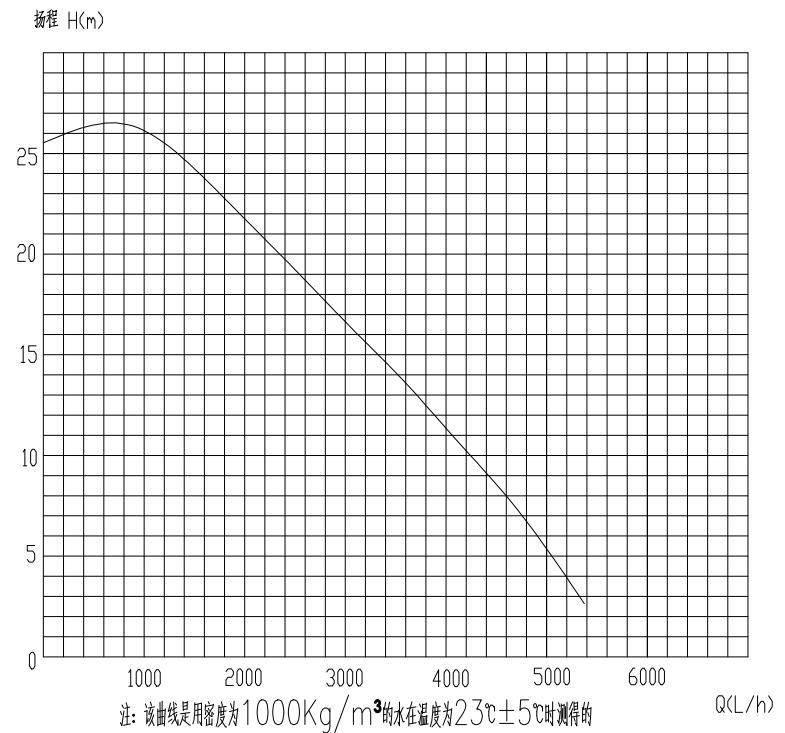

H-Q Performance Curve:
Work shop picture:
Verify capabilities and equipments:
Applications:
Eelectric Car, Electric Bus, Electric Truck, Fuel Cell cooling, Commerical Vehicle Battery,Thermal Management Liquid Cooling Systme, Battery Energy Storage cooling, Data Center, Immeersion cooling, Turbocharger intercooler cooling pump, Supercomputer cooling, Electricized engineering vehicles, Fluid cooling solutions......
FAQ:
Q: How long is your delivery time?
A: Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
Q: How long is your warranty of pump?
A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.
Q: What’s the payment method?
A: Paypal,T/T,
Q: What certificates have your pumps passed?
A: All our products have passed CE, RoHS, Reach.
Parts of pumps met UL.
Q: What certificates have your company passed?
A: Our company has passed IATF16949, ISO9001,
If you want to get more information about products, please feel free contact with us via ivanzhu@junqitrading.com
