Nema17 42*47mm 0.44N.m 1.68A ,2Phase 24VDC Hybrid Stepping Motor For Industrical Machine
General Specification:
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 28N( 20mm from the flange) |
| Max.Axial Force | 10N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electrical Specifications:
| Model | JQ42STH47-1684A |
| Current/Phase | 1.68A |
| Resistance/Phase | 1.65Ω |
| Inductance/Phase | 2.8mH |
| Holding Torque | 0.44N.m |
| Detent Torque | 0.02N.m |
| #of leads | 4 |
| Rotor Inertia | 68g-cm² |
| Length | 47mm |
| Weight | 0.35kg |

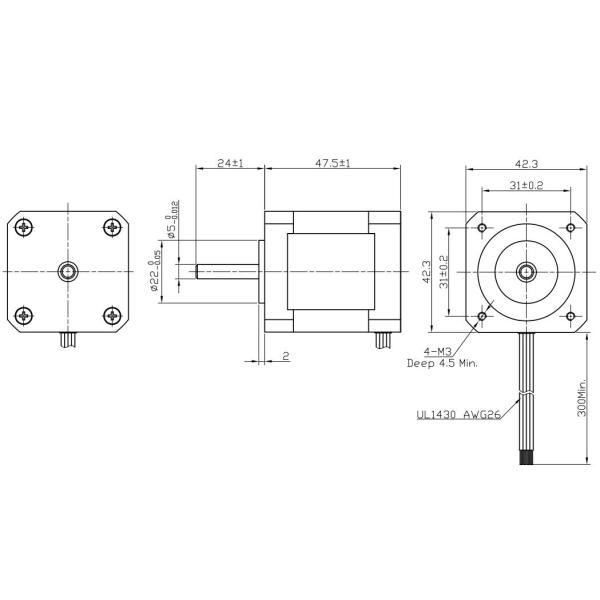

Dimension(mm):

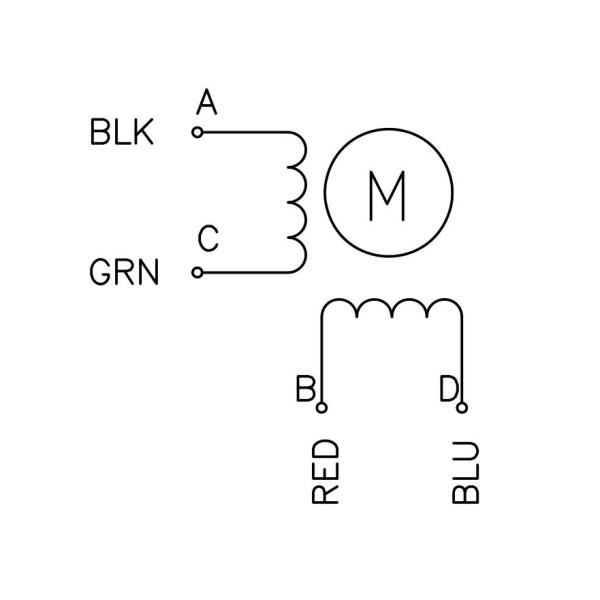

Wiring Diagram:

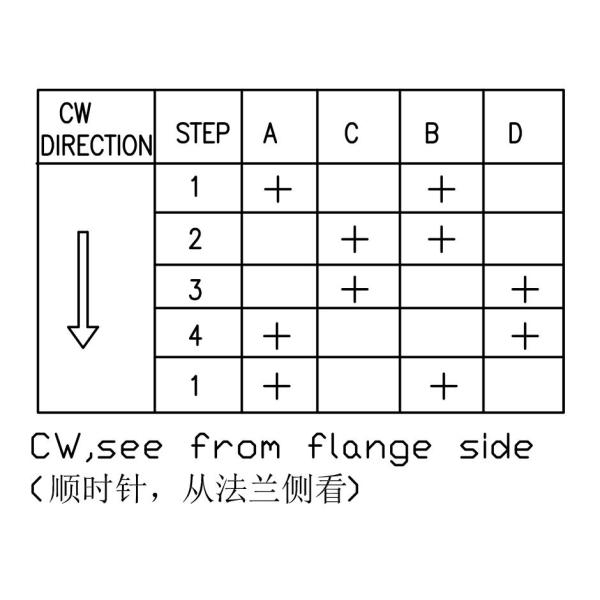

Exciting Sequence:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Motor Application Fields:
Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift
Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.
Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
